简介Introduction

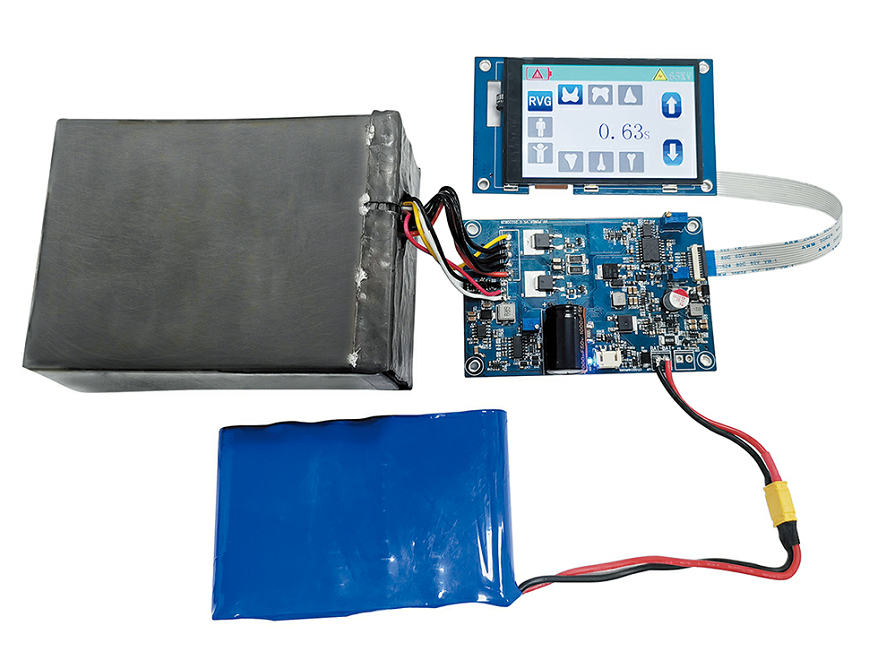

Fang Ji ® The FD-D series is a product that comes with portable X-ray products developed by the company. The product has a focal spot of 0.3-0.5mm, a power of 150W, high-frequency pulses, light weight, and small size. Compared to traditional dental machines, this module has a significant advantage in cost-effectiveness when compared to peers with the same parameters, especially for mass customization. At the same time, considering the special scenarios of insulators, oil and gas, and nuclear power in the ultra-high voltage of the power industry, high power, small focal spots, and micro X-rays have special application value. It is estimated that this product will be launched to promote the customization of related businesses in the above industries. The product design combines industry characteristics, integrates advanced industrial design concepts, and has a simple and beautiful overall appearance. At the same time, installation and movement are very convenient。
核心特征Core features
| Self | RV-120R | Mini Ray，Smart Ray | Runyes_RAY98（P） | HQY-B3a | E-Mini Ray | |
| NO.X | RV-120R | Mini Ray，Smart Ray | Runyes_RAY98（P） | HQY-B3a | \ | |
| Tube voltage | 70KV | 60KV | 70KV | 70KV | 60KV | 60KV |
| Tube current | 2ma | 2ma | 2ma | 2ma | 1.5ma | 1.5ma |
| Focus size | 0.4MM | 0.4MM | 0.4MM | 0.4MM | 0.7MM | 0.7MM |
| Battery voltage | 25.2 | 25.2 | 12.6 | 25.2 | 16.8 | \ |
| Efficiency | >82% | 65% | 78% | 72% | 76% | \ |
| Screen | IPS_3.5'' LCD touch screen | monochrome LCD+button operation | IPS_3.5'LCD touch screen | monochrome LCD+button operation | IPS_3.5'LCD touch screen | \ |
| Cooling method | Organic potting adhesive | Organic potting adhesive | Oil encapsulation | Oil encapsulation | Oil encapsulation | Oil encapsulation |
| weight | 2.5kg | 3.6KG | 3.8kg | 4.2kg | 3.5kg | 3~5kg |
| Price | \ | 3000~4000￥ | 3500~5000￥ | 3500~5000￥ | 2500~3500￥ | 2500~3500￥ |
