Introduction

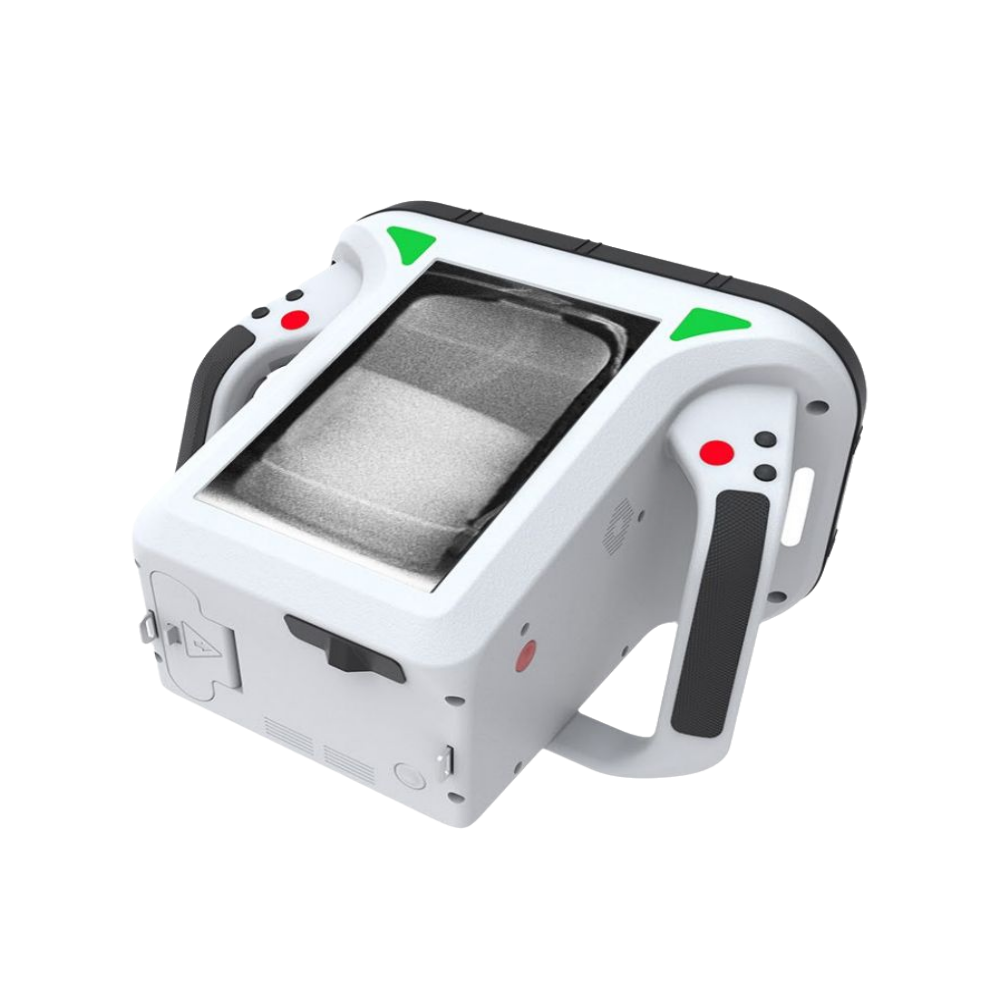

Fang Ji ® FX-HB140 portable X-ray backscatter scanning is an X-ray backscatter inspection equipment developed and manufactured by Fangji Infinite Technology Co., Ltd. It uses X-ray backscattering characteristics to scan the depth of the detected object to form an image, with a maximum detection depth of 7mm for iron. Specially suitable for security scanning and inspection of closed containers, interlayers, walls, etc., it can be widely used for anti drug and smuggling security checks in key places such as border inspection stations, customs, airports, etc. The product design combines industry characteristics, integrates advanced industrial design concepts, and has a simple, beautiful, and lightweight overall appearance.
----------------------------------------------------------------------------------------------
Core features
| engineering design | Ergonomic design, built-in quick physical navigation buttons. Can achieve fast switching and quick coloring |
| operating system | The latest Android Version 9 supports remote updates, even if available. |
| tube voltage | 0-140KeV adjustable |
| power | 0-8W adjustable |
| Preheating time | No preheating process |
| System correction | No need for active calibration, the instrument automatically calibrates |
| Scanning mode | Back scattering (fast, standard, fine) and transmission scanning modes |
| monitor | 7-inch touch screen, resolution 1080P |
| Penetration thickness (steel plate) | 7+mm |
| Line resolution | Can distinguish 0.21mm metal wire, take real photos of 0.21mm metal wire on polyethylene board, and visually recognize the metal wire in the image |
| Laser locator | Dual laser positioning function |
| Customized Internet | Real time viewing of scan results on computer, mobile phone or tablet |
| Image pseudo color function | It has image processing functions such as false color, inverse color, enhancement, contrast adjustment, window width and level adjustment, etc; Support image playback, image enlargement or reduction, and image grouping management; Support automatic sleep function; Support associated storage of scanned and captured images; Support data backup and restoration; Equipped with user management, language switching, and maintenance diagnostic functions; |
| Single scan time limit | 35s |
| Standard scanning speed | Standard scanning speed: 200mm/s, fastest 450mm/s |
| Radiation safety | 1. When the device is not logged in, the X-ray source cannot emit a beam; When the X-ray source emits a beam, the red warning light lights up and there is a warning sound prompt. Short press the power button to quickly cut off the beam (provide a radiation safety certificate issued by an authoritative department with the manufacturer's seal); 2. At a distance of 5cm behind the instrument, the ambient dose equivalent rate of scattered radiation shall not exceed 0.15uSv/h |
| Battery capacity | Battery capacity: 95Wh |
| Security protection function | 1. Interface operation permission confirmation function; 2. Dual trigger confirmation function; 3. Radiation generation prompt. |
| Shell protection level | IP54 |
| working temperature | -20℃--50℃ |
| data transmission | USB、 Bluetooth, WIFI |
| Overall dimensions | 292×228×190 |
| Whole machine weight (host) | 3.95Kg |
----------------------------------------------------------------------------------------------
