X-Ray Food Foreign Object Machine

Introduction

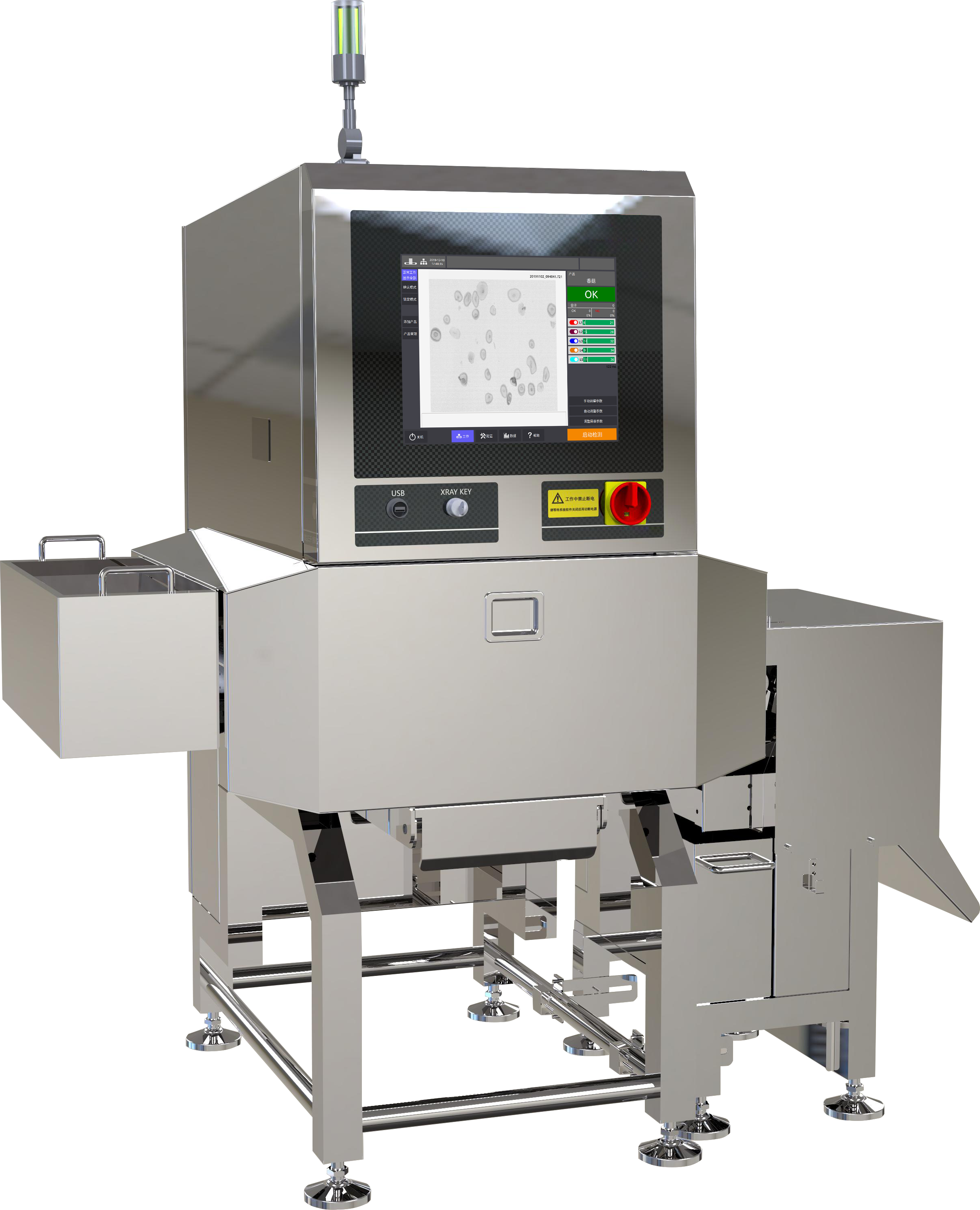

Fang Ji ® The FX-B/T/C series X-ray food foreign object detection machine is based on the penetration of X-rays through media of different densities, with different energy grayscale levels. It uses grayscale gradient changes and image processing technology, combined with artificial intelligence technology, to intelligently identify and remove foreign objects in food bags, boxes, cans, and tinplate packaging. This product is suitable for food processing and export enterprises to perform online detection of foreign objects in food. The product design combines industry characteristics, integrates advanced industrial design concepts, and has a simple and beautiful overall appearance. At the same time, installation and movement are very convenient。

----------------------------------------------------------------------------------------------

Core features

1: All stainless steel, easy to disassemble, waterproof, washable;

2: Fast detection speed, up to 7 meters per second at the fastest;

3: standard test

Bagged and boxed cookies

SUS8all:0.3mm

SUSWire:0.2*2mm

Ceramic/Glass Ball:1.0mm
Chocolate/Milk Sugar/Soybean/Peanut Bags and Boxes:

SUS Ball: 0.5mm, SUSWire: 0.4*2mm, Ceramic/Glass Ball: 1.0mm

Chocolate/Milk Sugar/Soybean/Peanut Bulk:

US Ball : 0.3mm, SUS Wire: 0.2*2mm, Ceramic/Glass Ball: 1.0mm

Canned/Mack Iron:

SUS Ball : 0.3mm, SUS Wire: 0.2*2mm, Ceramic/Glass Ball: 1.0mm

Fish/chicken/pig legs, etc.:

SUS Ball: 0.2mm, SUSWire: 0.1*2mm, Ceramic/Glass Ball: 1.0mm

4: Easy to operate, choose different scene models and learn from 8-16 samples;

----------------------------------------------------------------------------------------------
