Introduction

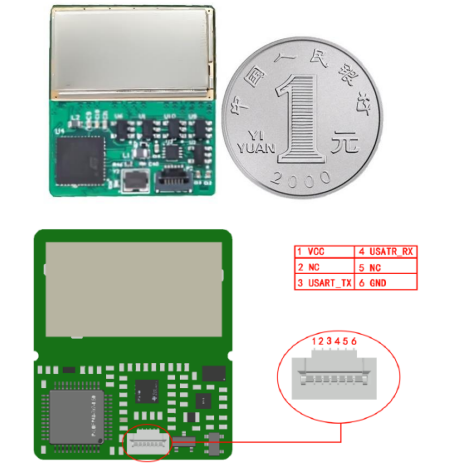

Fang Ji ® The FJ-X2 series products are based on the fourth generation detectors of Tellurium Zinc Cadmium (CZT) and LaBr3: Ce crystals to detect X, Y, alpha particles, and neutrons. Especially suitable for medical X-ray equipment radiation monitoring, nuclear work environment radiation monitoring, industrial X-ray detection equipment radiation monitoring, X-ray equipment radiation monitoring and other scenarios. The product design combines industry characteristics, integrates advanced industrial design concepts, and has a simple and beautiful overall appearance, providing wearable, handheld, or modular (user secondary development) options.
------------------------------------------------------------------------------------------
Core features
1: Detecting X and Y radiation within the range of 30keV~3MeV;
2: Compact, high sensitivity, accuracy of 0.01uSv/h,<± 20% @ 137Cs;
3: Response time<3s

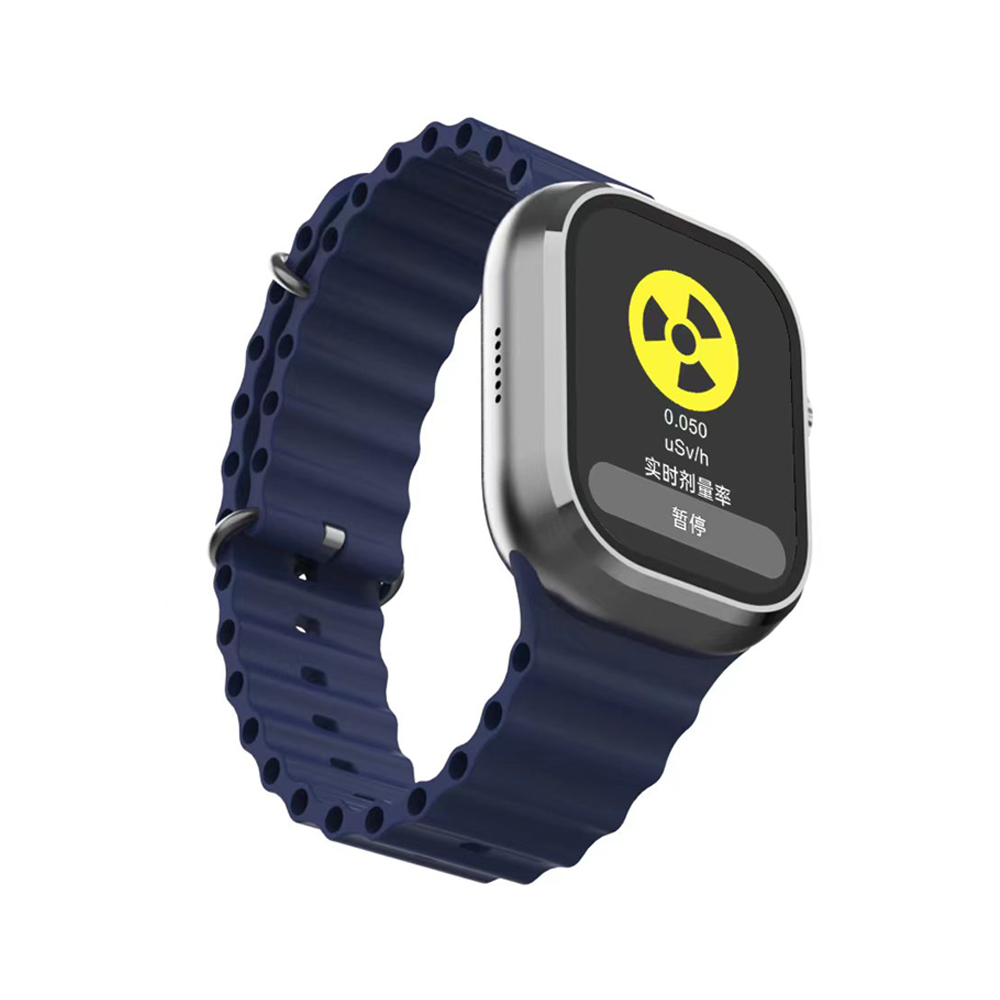

4: X2 supports cloud based data management and can monitor X/γ personal dose rates, blood pressure, heart rate, and exercise steps, providing personal threshold alarms and a visual warning platform;
6: 60h battery life;
7: Support Beidou, GPS, LBS (optional);

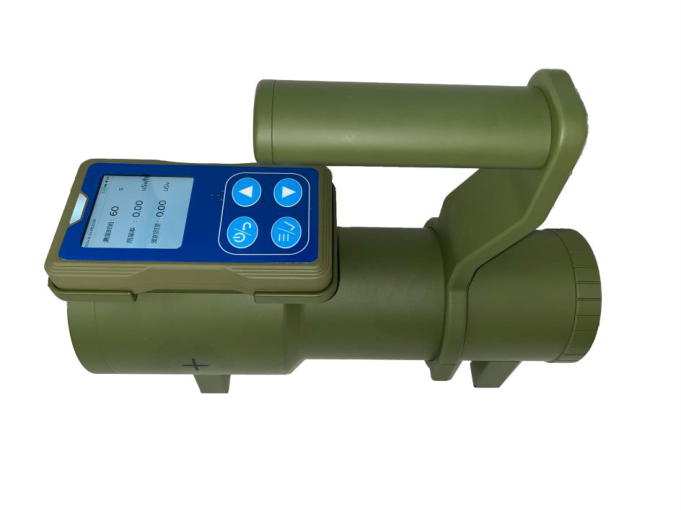

8: The handheld neutron detector LaBr3: Ce crystal has the characteristics of high density (5.1 g/cm3), high light yield (70000 photons/MeV), fast decay time (16 ns), high energy resolution (2-3%, making it the best inorganic scintillation crystal in terms of energy resolution to date), good energy proportionality, and strong high-temperature stability.
9: Each product is based on the calibration certificate issued by the National Bureau of Metrology;
----------------------------------------------------------------------------------------------
Technical Reference
The specification sheet for neutron detection technology needs to be provided separately by contacting the business。
