Introduction

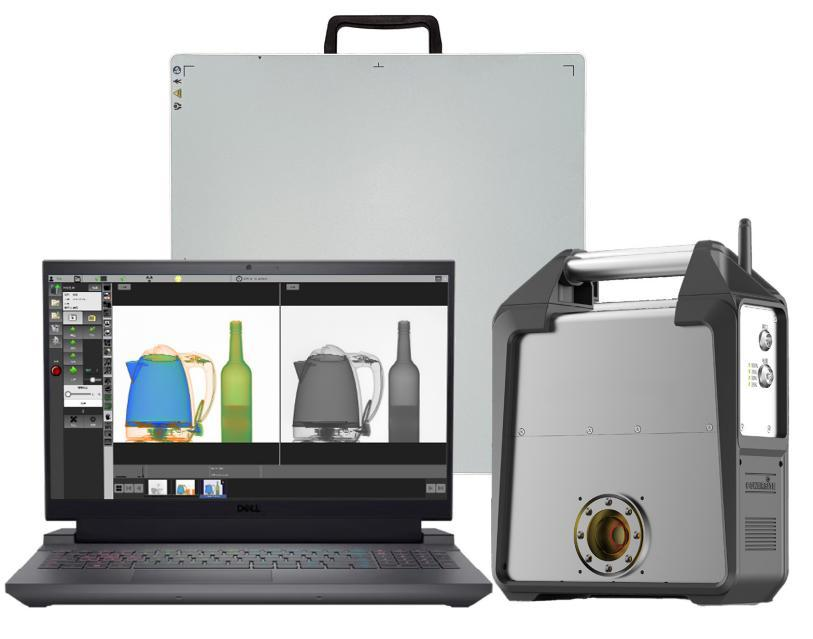

Fang Ji ® The FJ-PW150 X-ray detector is a wireless portable X-ray inspection device developed and manufactured by Fangji Infinite Technology Co., Ltd. Using small and micro focal spot light sources, combined with IRAY flat panel detectors, non-destructive testing of ICs, PCBs, PCBAs, LEDs, 3D printed products, castings, welded parts, and other components is achieved. The product design combines industry characteristics, integrates advanced industrial design concepts, and has a simple and beautiful overall appearance. At the same time, installation and movement are very convenient.
----------------------------------------------------------------------------------------------
Core features
1: Convenient 4.9kg light source, default effective focal spot 0.3mm (optional portable micro focus light source), built-in 2 batteries, each can shoot 30 times, standby for 4 hours; Supports direct power supply from portable 48V outdoor power supply.
2: Wireless tablet, 43 * 43mm, spatial resolution of 3.5 LP/mm, display resolution of 3072 x 3072, weighing only 3.8kg, with 2 built-in batteries and a single battery life of 1.5 hours. Can be configured with a higher resolution tablet.
3: Rich image processing functions: color display, black and white display, edge enhancement, super penetration, pseudo color, inverse color, window width and level, etc
4: Rich image operation functions: open, save, image stitching, print, print preview, move mode, zoom in, zoom out, adapt to window, original size, horizontal mirror, vertical mirror, counterclockwise rotation 90 degrees, clockwise rotation 90 degrees, window width and level adjustment mode, local enhancement mode, distance measurement mode, etc;
5: Convenient and fast, military travel box packaging, all wireless installations are easy, autofocus is automatic, and operation is convenient.
----------------------------------------------------------------------------------------------
技术资料（Technical Reference）
请联系业务员索取技术资料(Please contact the salesperson to request proposal materials)
